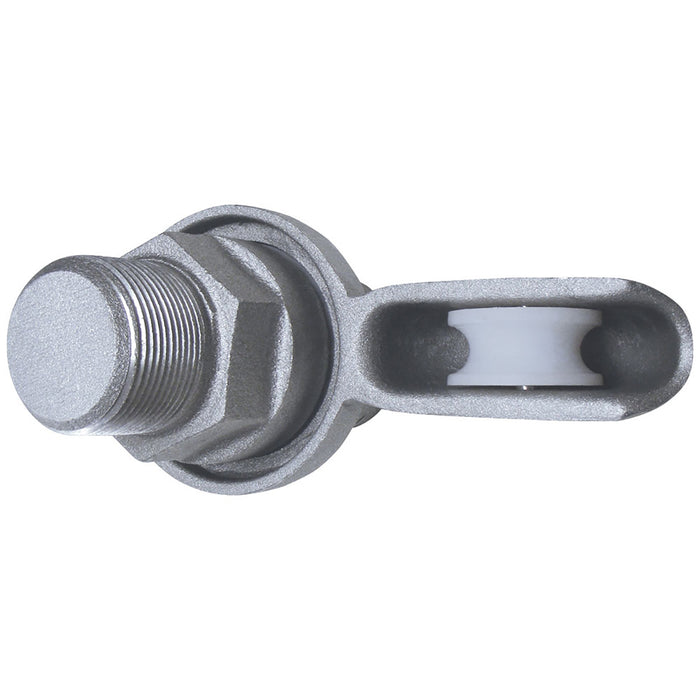

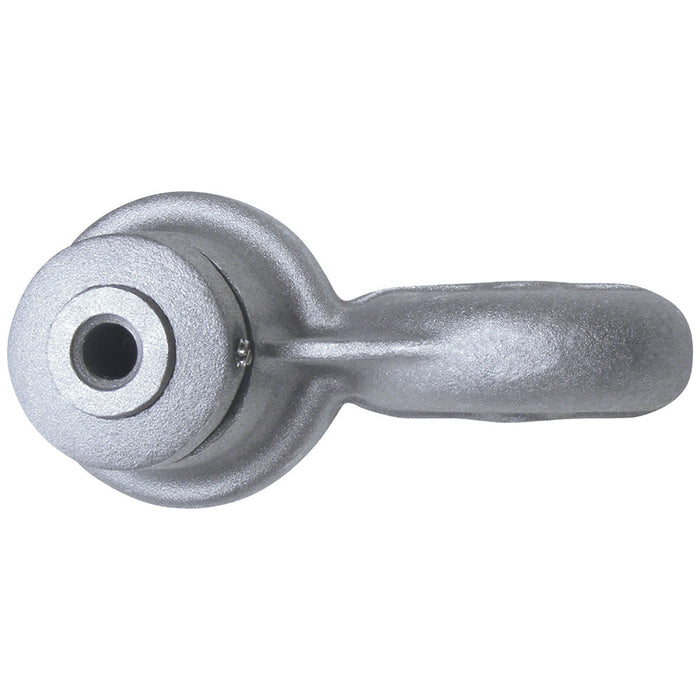

Truck Pulley Assembly - Rotating Threaded
Revolving truck with threaded bottom fitting. Cast Aluminum, typically used on poles with up to a 3.5" top diameter.
Cast aluminum flagpole truck for external halyard poles with femail fitting, threaded type, revolving, single pulley. Revolves with the wind to reduce flag wrapping around the pole.
• Construction: cast aluminum
• Pulley: 1-1/2" outside diameter nylon on 1/4" stainless steel axle
• Max halyard diameter: 5/16"
• Truck Spindle: 1-1/4" NPT threading
• Flagpole: For up to 3-1/2" outside top diameter pole w/ female fitting installed
• Ornaments: accepts spindle threading of 1/2"-13NC*. Secured by 1 stainless steel set
screw (1/4"-20NC), such as our Ball Tops
• Movement: utilizes self-lubricating ball bearing assemblies for ease of rotation, product
life and strength
